Fortress Power eBoost 16kWh Solar Battery with eWay Lite | Simplified DIY Wiring Solution
Compact, DIY-Friendly, Efficient

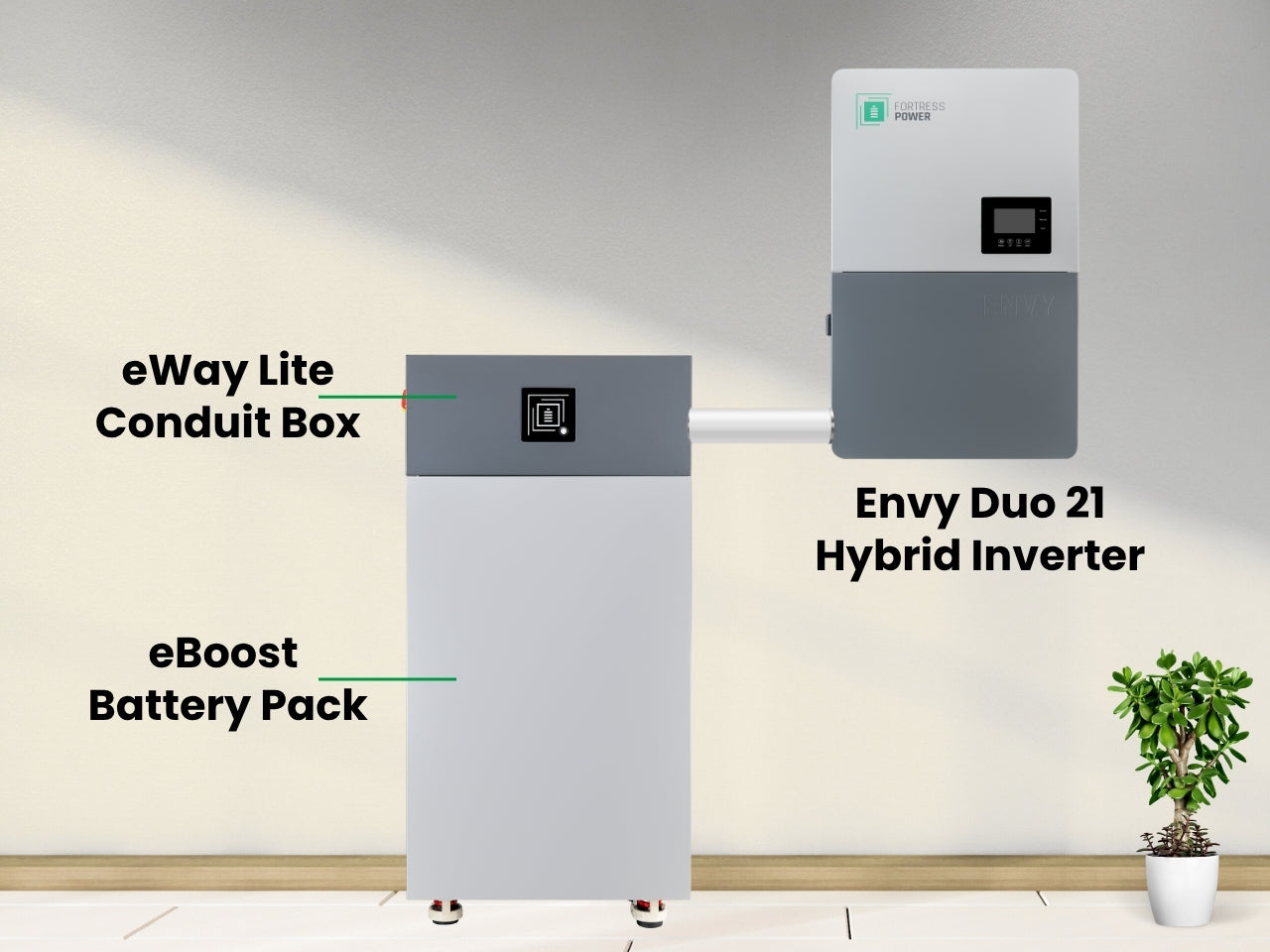

The Fortress Power eBoost with eWay Lite is a high-capacity 16kWh solar battery optimized for simplified DIY installations. Designed for single-inverter setups, the eWay Lite provides clean, organized wiring with a compact footprint. With built-in power switch and side-mount compatibility for Envy Duo 21/12/10/8kW inverters, eBoost with eWay Lite delivers reliable, expandable energy storage for homes or small off-grid systems. Ideal for DIY enthusiasts seeking a straightforward, cost-effective solar backup solution.
Applications
-
Whole-home backup power
-
Off-grid homes and cabins
-
DIY solar setups
Meet the Fortress Power eBoost Scalable Home Energy Storage System

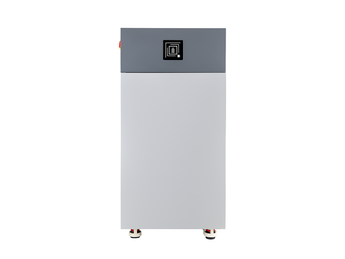

eBoost 16kWh LFP Battery / Key Benefits
Energy Freedom, Power for All Conditions
🛡️ Long-Lasting Power You Can Rely On
Premium LFP cells deliver over 8,000 cycles and include a 10-year warranty, ensuring dependable, long-term energy storage for your home.
🔋 High-Capacity, Space-Saving Design
Each eBoost unit provides 16kWh of usable energy, perfect for single-inverter setups or compact installations where simplicity and efficiency matter most.
🧰 Streamlined Wiring with eWay Lite

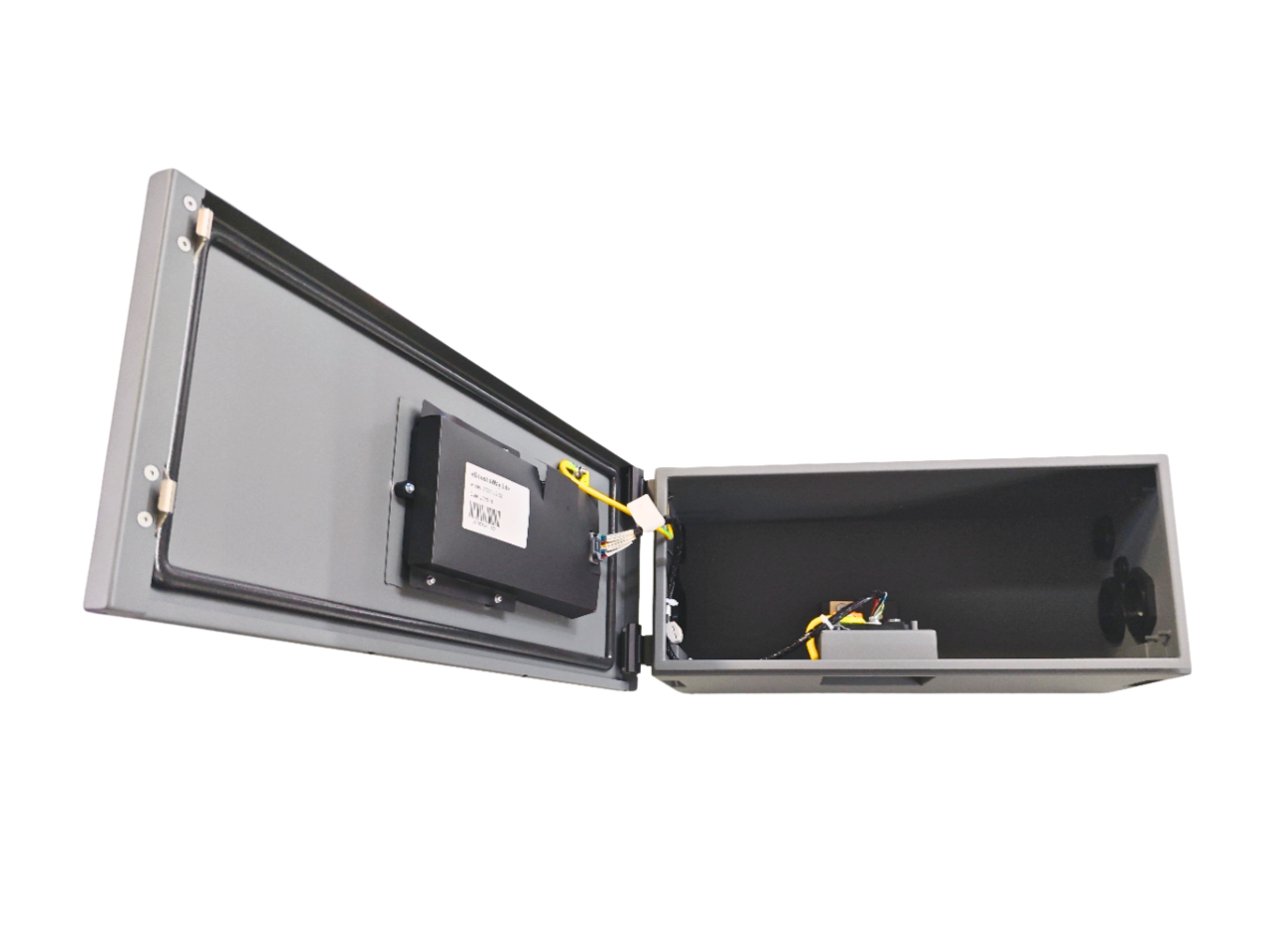

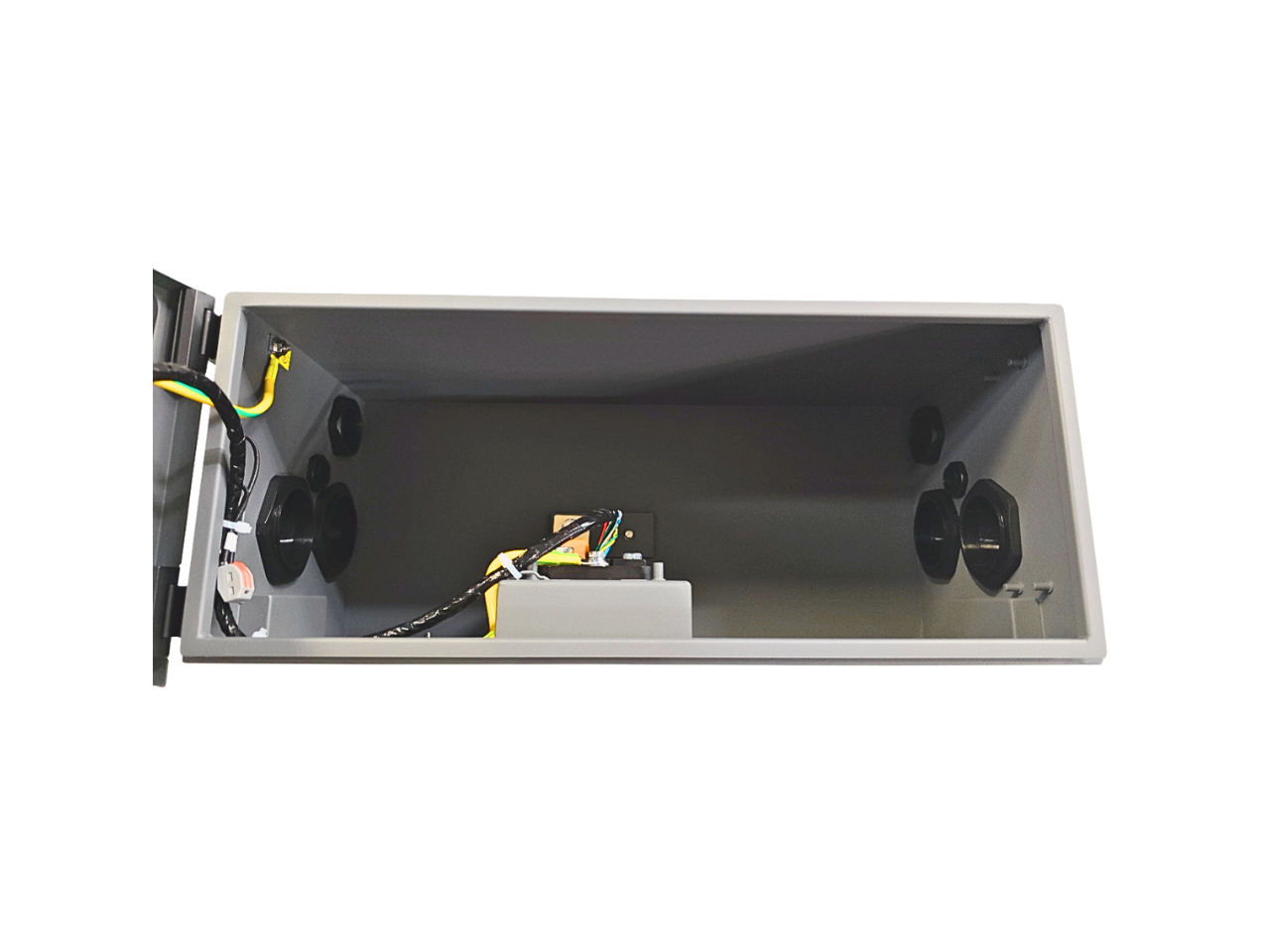

The eWay Lite wireway offers a clean, organized connection with a single 250A terminal and built-in power switch—ideal for quick DIY assembly and side-mounting Envy inverters (21 / 12 / 10 / 8 kW).
🛠️ DIY-Friendly & Easy Installation
Designed for straightforward, one-battery configurations, eBoost with eWay Lite lets homeowners achieve a fast, code-compliant setup without complex wiring or extra components.
🌦️ Built-In Heater & All-Weather Protection
IP65-rated enclosure and built-in heating elements maintain reliable performance in cold, humid, or dusty environments—indoors or outdoors.
eWay vs eWay Lite – Which Wireway Fits Your Solar Setup?
Not all wireway solutions are created equal. Fortress Power’s eWay and eWay Lite serve different installation needs — from multi-battery, expandable systems to simple residential setups. Learn the key differences, how to choose the right one for your home or business.
eBoost Feature Videos
See what eForce can do.
eBoost Installation Videos
Step-by-step setup guide.
eBoost Influencer Videos
Hear what influencers think. Coming Soon~
eBoost 16kWh LFP Battery Technical Specs & Downloads
Get the details you need—spec sheets, manuals, and performance data all in one place. We link directly to the manufacturer's site, so you know you always have the most up-to-date information.
| 16kWh | 32kWh | |
| GENERAL DATA | ||
| Weight | 353 lbs (160 kg) | 706 lbs (320 kg) |
| Operating Temperature | -4 ºF – 140 ºF (-20 ºC – 60 ºC)* | |
| Ingress Protect | Degree IP65 | |
| Communication | PCS CAN/RS485; Parallel:CAN | |
| Dimensions (W*D*H) | eWay : 22.84×10.18×9.39 in (580×258.6×238.5 mm) | Battery: 22.28×10.18×33.71 in (566×258.6×856 mm) | |
| Warranty | 10 years (up to 15 years with Fortress Power inverter and platform) | |

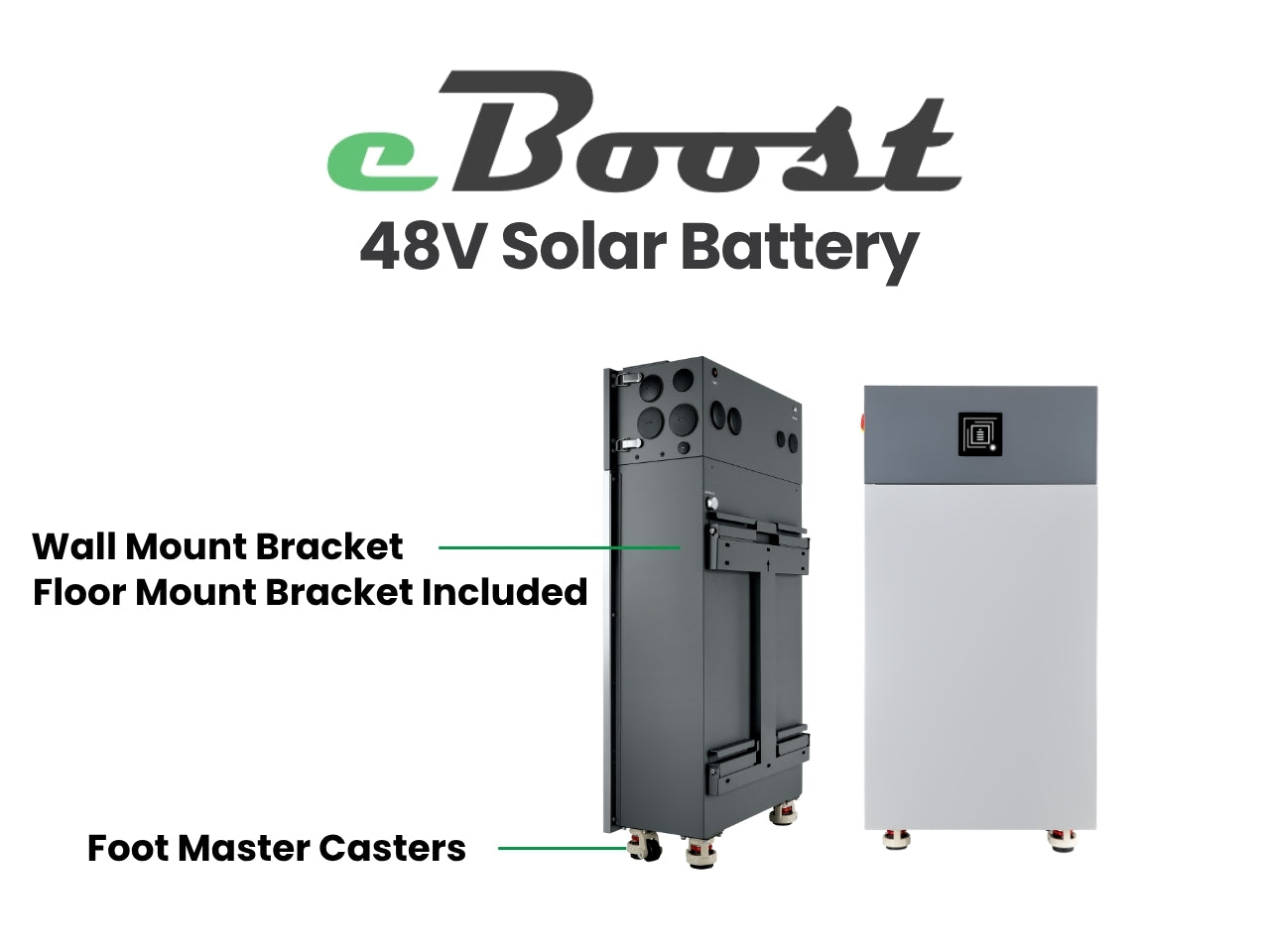

| Mounting Options | Ground-Mount, Floor Standing, Wall-Hanged (Separate Accessory) | |
| BATTERY SPECIFICATIONS | ||
| Maximum Units In Parallel | 16 | |
| Cell Type | Tier-1 Prismatic 16 Cell LFP | |
| Nominal Capacity | 314Ah | 2 x 314Ah |
| Nominal Energy | 16.1kWh** | 32.2kWh** |
| Nominal Voltage | 51.2V | |
| Re-charge Voltage | 49V | |
| Cut-off Voltage | 41.6V | |
| Maximum Short-Circuit (A) | Under Testing | |
| Operating Voltage Range | 41.6-57.6V | |
| Closed-Loop Charge/Discharge | 180/250 A | 360/500 A |
| Bulk/Absorption Charge | 55.2V | |
| Max Charge/Discharge | 314A/10s | 628A/10s |
| Surge Discharge Power W | 18kW/10s | 36kW/10s |
| Cycle Life @ EOL 70% | 8000 Cycles | |
| STANDARDS & CERTIFICATIONS | ||
| Safety Standards | UL1973, ANSI/CAN/UL9540:2023, UL9640A (expected Q3 2025) | |
| Listings | CEC, LUMA, oGPE | |
| Transportation | UN38.3 | |
* Performance will degrade at operating temperatures above 104 ºF (40 ºC)
** Values are based on measurements taken at 77 ºF (25 ºC) at beginning of life.
