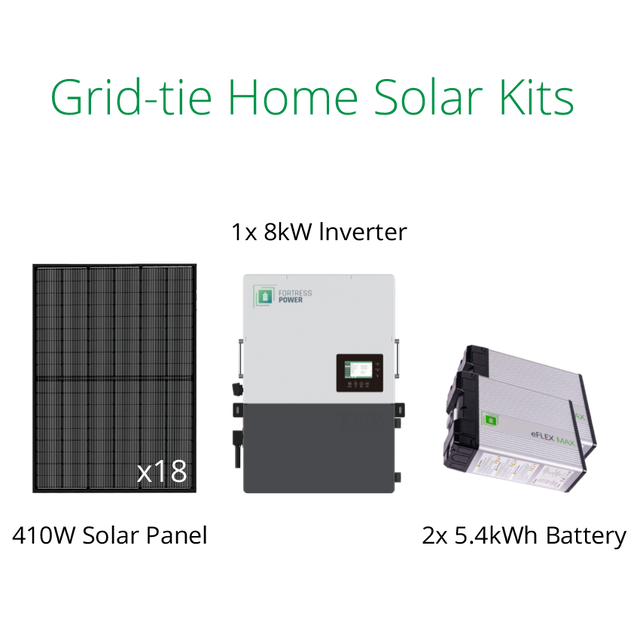

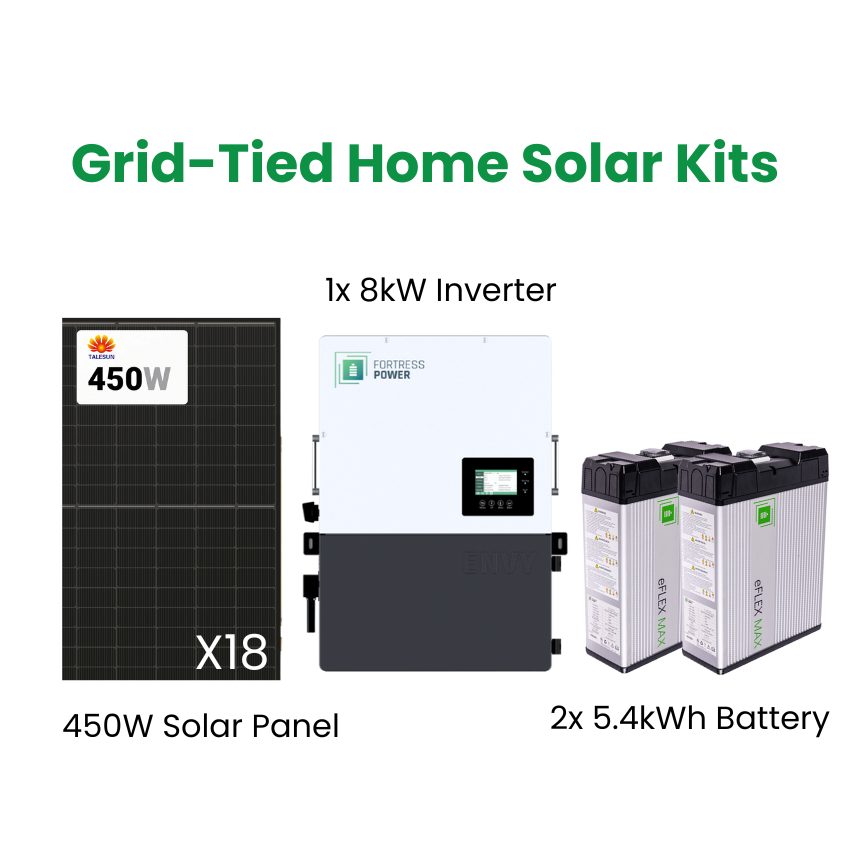

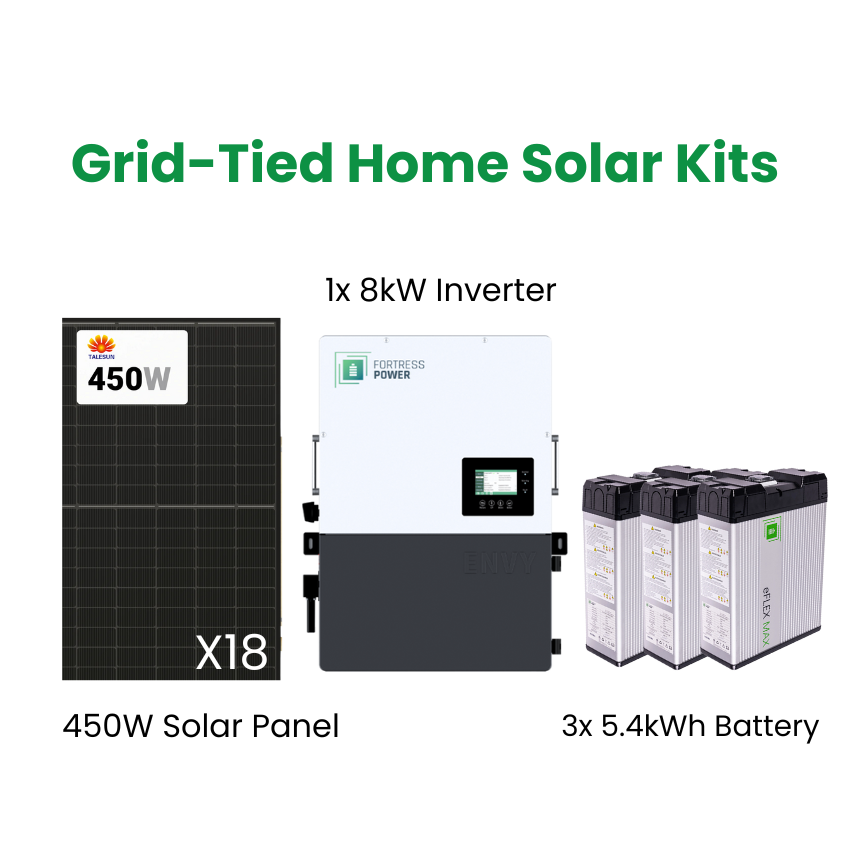

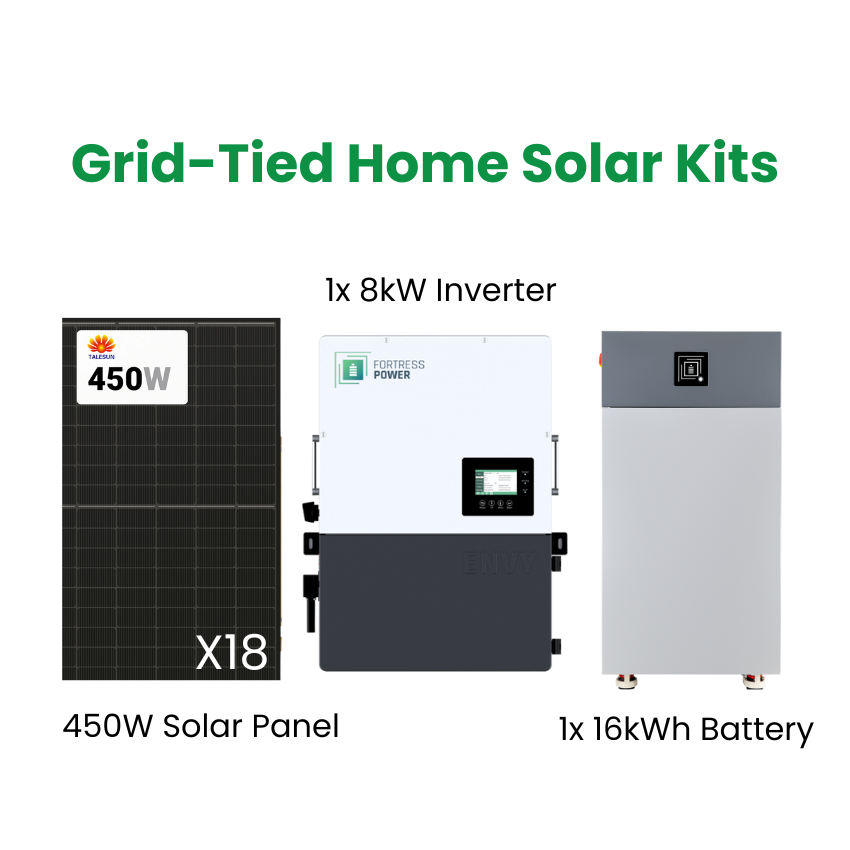

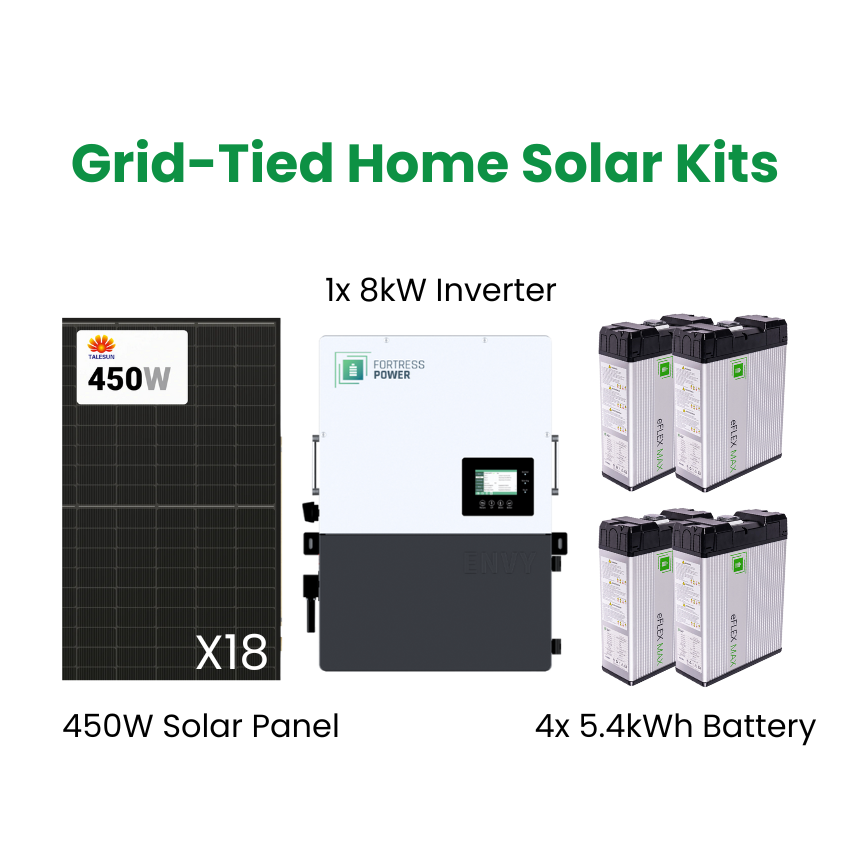

7.38kW Complete Grid-tie Home Solar Kits - 1x Envy Hybrid Inverter 8kW Output | 120/240V Split Phase 120/208V Three Phase | 9.6kWh-21.6kWh Fortress Power Batteries | 18x 410W Solar Panels
26.3kWh
Estimated Daily PV production7.38kW Complete Grid-tie Home Solar Kits - 1x Envy Hybrid Inverter 8kW Output | 120/240V Split Phase 120/208V Three Phase | 9.6kWh-21.6kWh Fortress Power Batteries | 18x 410W Solar Panels - Not Needed / 2x eFlex Max 5.4kWh with wallmount (total 10.8kWh)_Outdoor is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
7.38kW Complete Grid-tie Home Solar Kits - 1x Envy Hybrid Inverter ...
Essentials Appliances
Wi-Fi Router
Lights
Television
Phone Chargers
Laptop Home PC
Microwave
Well Pump
Refrigerator
Major Appliances - Comfort living
MiniSplit AC Conditioner
Kitchen Stove
Hair Dryer
Vaccum Cleaner
Dishwasher
Electrical Tools
Level 1 EV Charger
Heavy Appliances - Wholehome
Level 2 EV Charger
Heatpump
Dryer
Water Heater
Central Air Conditioner
Oven
Power Tools
Need help? Our Solar Beaver is here to assist you!
If you need help, we're here to assist you whether you're facing issues, have questions, or need clarification.
- Products Details
- Reviews
- FAQ’s
Our 7.38kW grid-tie solar kit helps you create a solar system that meets your energy needs, saves you money, and supports a greener future.
Annual Estimated PV Production:
18 x 410W (PV array wattage) x 1300 (average hours of sun) = 9,594kWh/year
Daily Estimated PV Production: 9,594kWh/year ÷ 365 days = 26.3kWh/day
Backup Power:
For systems requiring backup power, an AC-Coupled Grid-Tie Inverter and batteries are necessary. These systems are connected to the grid and can sell excess power back to the utility company.
To ensure your grid-tie solar system meets your energy needs and goals, follow these steps to configure your solar panels, inverter, and batteries for optimal performance and reliability. In this kit, we have already included the basic configuration of solar panels and an inverter, and you can choose the battery based on your backup power needs.
Grid-Tie Solar System Design Steps
Step
Action
Example
1. Assess Energy Consumption & Define Goals
Calculate daily energy usage by reviewing past bills and identify system goals, such as reducing electric bills 70% or providing backup power.
10000 kwh/yr * 70% / 365 days/yr = 19.17kwh/day
2. Calculate Solar Array Size
Determine the required solar array capacity using average daily energy usage and sunlight hours.
19.17kWh/day ÷ 4 hours/day = 4.8 kW
3. Determine Inverter Capacity
Select a Grid-Tie Inverter with a capacity slightly higher than the solar array size.
4.8 kW + 20% buffer = 5.75 kW
4. Plan for Battery Backup
Calculate battery capacity for backup power if needed and consider the system efficiency 80%
(19.17kWh/day × 1 day) /0.8=23.96kWh
5. Choose Your Battery Capacity
Consider your usage environment and choose between eFlex Max 5.4kWh and eForce 9.6kWh-19.2kWh outdoor battery and eVault 18.5kWh indoor battery.
Battery: eForce 19.2kWh for outdoor use
6. Determine the Number of Batteries Needed
Divide total watt-hours required by individual battery capacity.
23.96kWh ÷ 19.2kWh/battery ≈1.25
Round up to 1x eForce 19.2kWh battery
Essential Components for Your Project: Below is the packing list for each product you’ll receive. This gives you a clear overview of the components, making it easier to start preparing and building your DIY solar system.
What's Included?

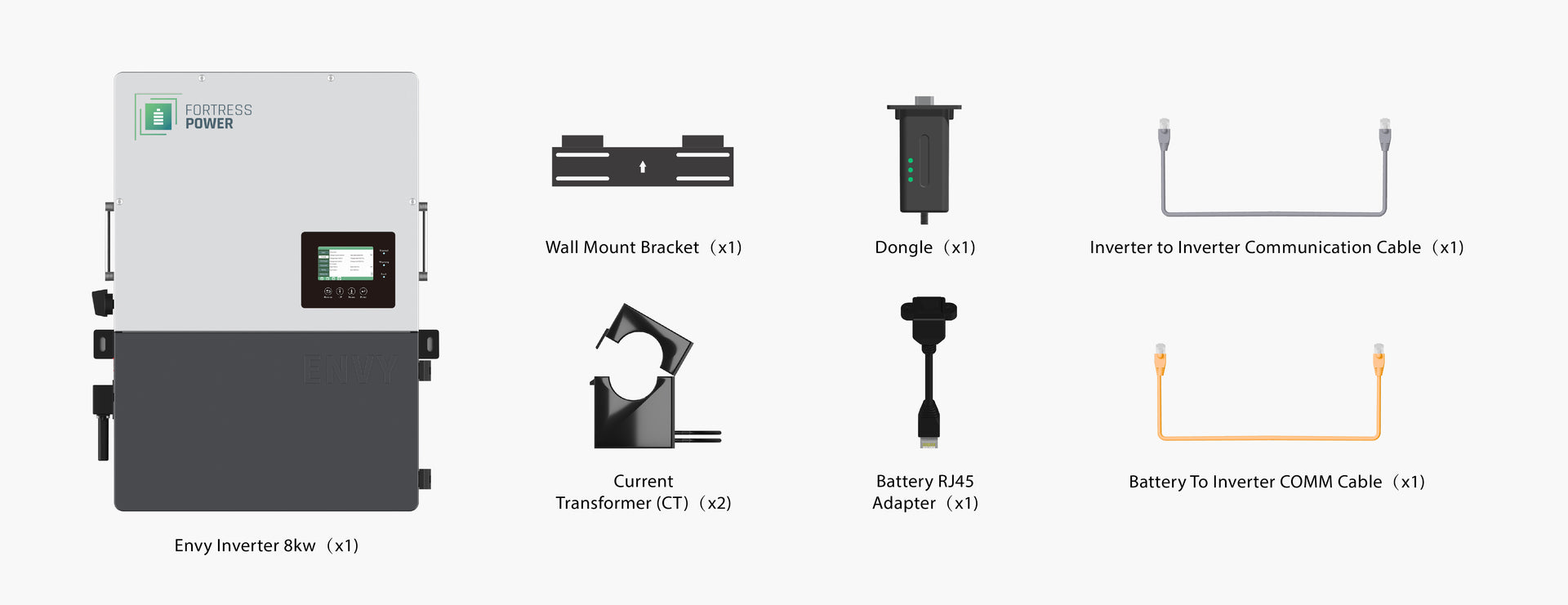

For Each Envy 8kW Hybrid Inverter
For Each eFlex Max 5.4kWh Battery with Wallmount

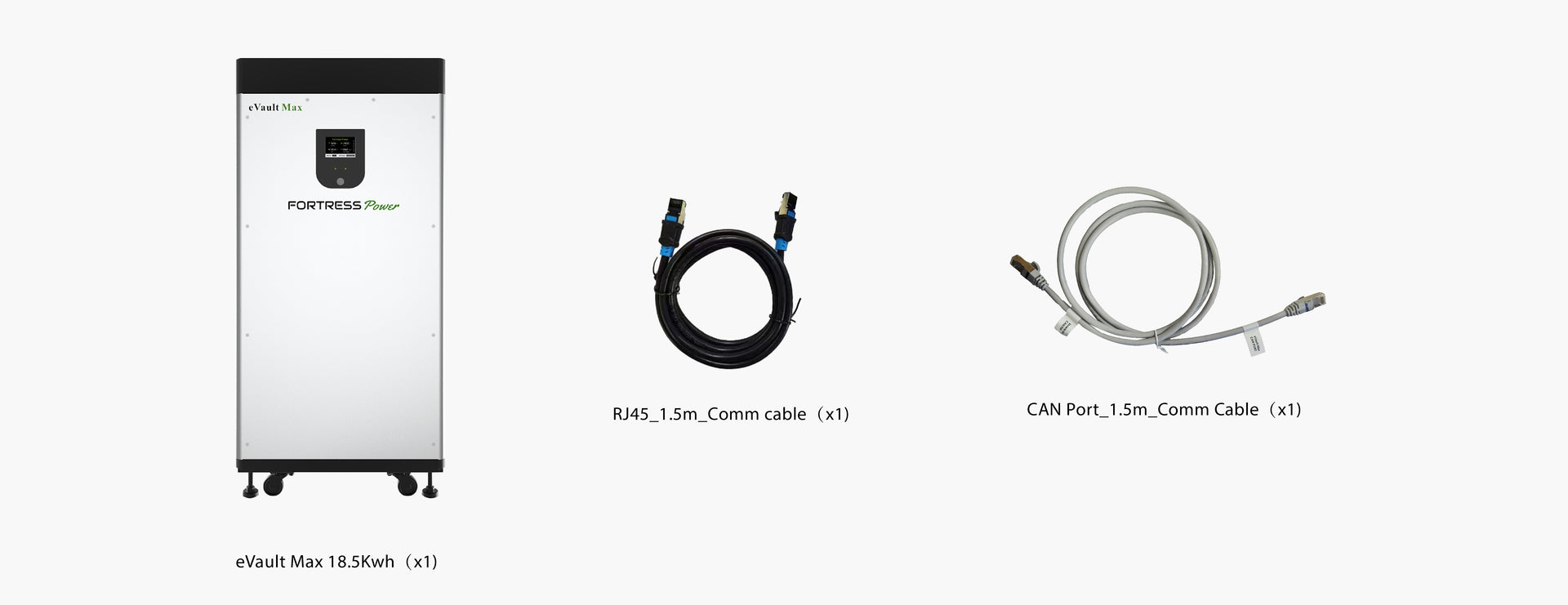

For Each eVault Max 18.5kWh Indoor Battery

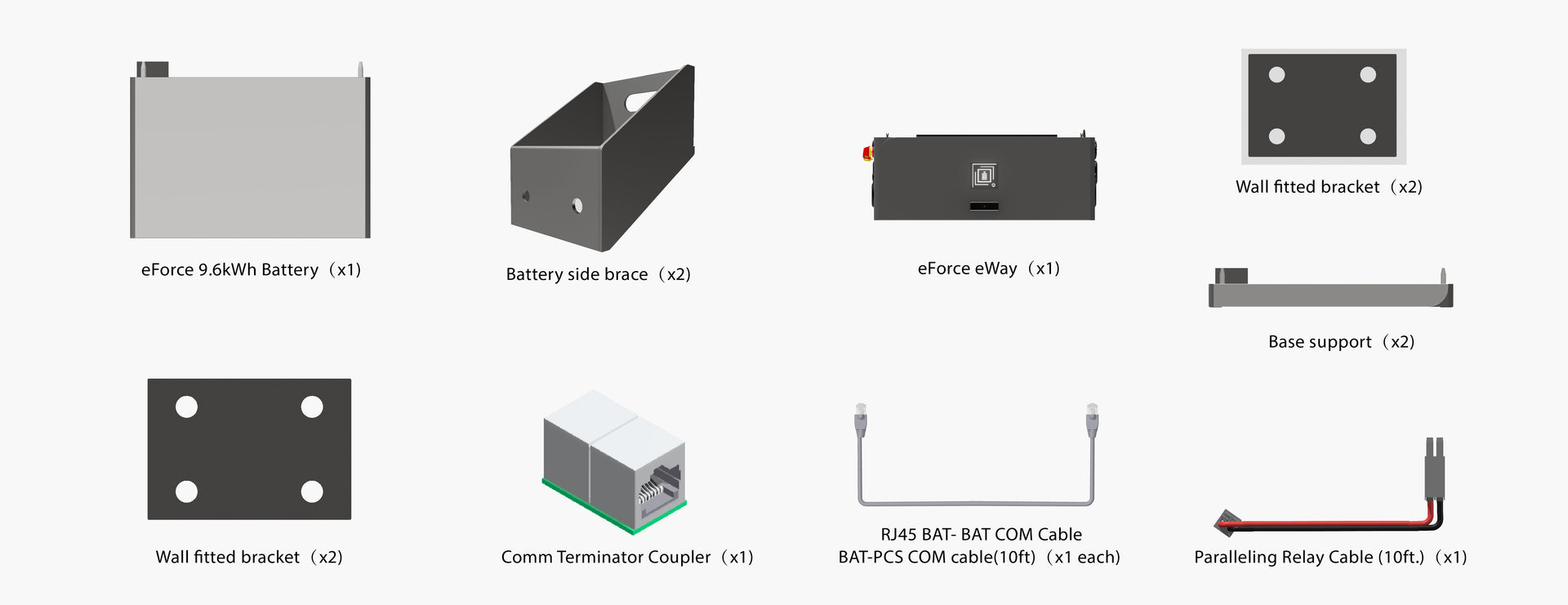

For Each eForce 9.6kWh Stackable Battery
