DuraRack Mini with Busbars Included I Outdoor Rated I Up-to 2 eFlex Max 5.4kWh Batteries
$699.00
Unit price
/
Unavailable
Shipping calculated at checkout.
Couldn't load pickup availability
DuraRack Mini with Busbars Included I Outdoor Rated I Up-to 2 eFlex...
$699.00
Unit price
/
Unavailable
Easy Stacking
IP66 Water and Dust Resistant
Free-standing or Pad Mounted
- Features
- Specification
- Downloads
- Reviews

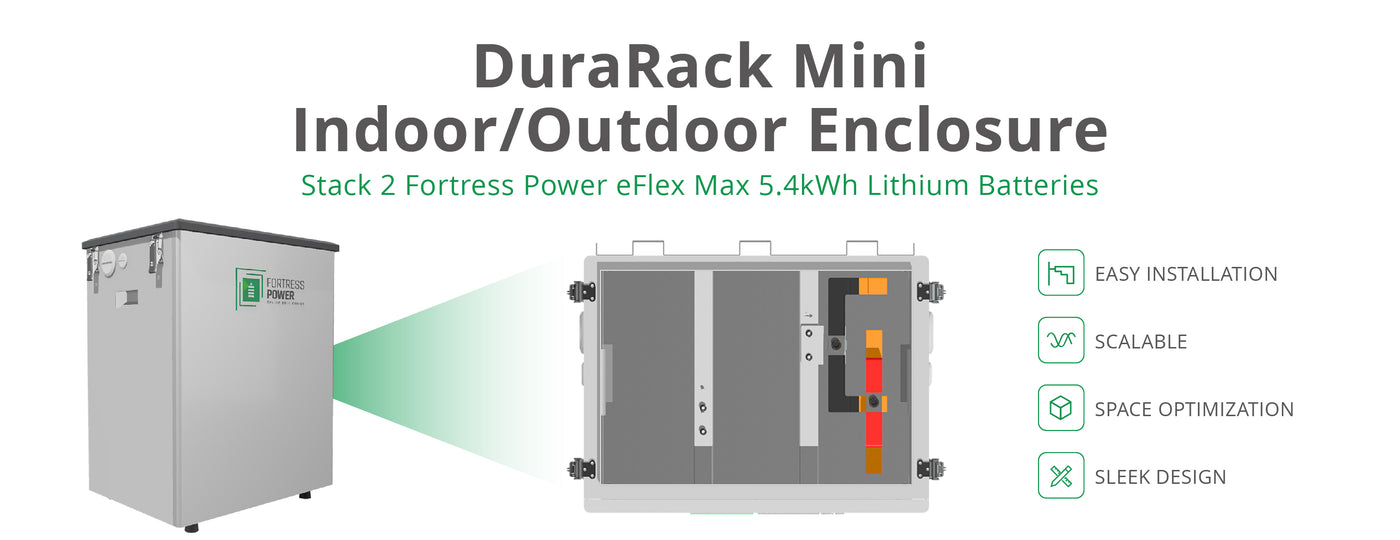

Expand your energy storage with the new DuraRack Mini! This enclosure stores up to 2 Fortress Power eFlex 5.4kWh batteries per unit. The DuraRack mini paired with multiple eFlex batteries can build a 48V UPS server rack or provide storage capacity to home solar arrays. The DuraRack Mini includes integrated busbars. This enclosure can be free-standing, or wall mounted and built with IP66-rated carbon steel, making it suitable for both indoor and outdoor use.
Specification
Model
DuraRack Mini
Enclosure Material
Carbon steel (SGCC galvanized sheet)
Enclosure Protection
IP66
Enclosure Color
Grey
Dimension (in)
22x16.5x27.5
Weight (lb.)
30
Maximum Battery Unit
2 eFlex
Storage Capacity Range
5.4kWh – 10.8kWh
Knockout Size
1.15 inch & 2 inch
Heat Dissipation Method
Air convection
Humidity Range
5%-95%
Positive and Negative Battery Busbars Terminal Size
M6
Recommended Cable Size to Inverter
3/0-4/0
Terminal Torque
7.5 – 8.3 Nm
Warranty
10 years
